Xakamaynta Taxanaha SDJ ACIM (3KW)
Tilmaamaha badeecada ee taxanaha SDJ (3KW).
SDJ taxane AC kontaroole waa darawal loo sameeyay baabuurta AC ee korantada yar.Sida qalabka wadista isku halaynta sare iyo matoorka asynchronous torque weyn, oo loogu talagalay habka xakamaynta vector afar afar geesood ah, waxay si sax ah u xakameyn kartaa xawaaraha mootada & qulqulka.Waxaa si weyn loogu isticmaalaa gaariga rakaabka koronto saafi ah, xawaaraha hoose ee A00 fasalka rakaabka gaariga, gaadiidka daawashada korontada, gaari xaaqaya koronto, gaari saadka korontada, iwm.
Taxanaha SDJ AC kantaroole wuxuu qaataa kantaroolka wadista dhijitaalka ah iyadoo DSP ay tahay xudunta, heerka ilaalintuna wuxuu gaaraa IP67.Kantarooluhu wuxuu qaataa matoor aan la isku hallayn karin oo leh isku halaynta sare iyo qulqulka sare sida qalabka wadista, kaas oo leh sifooyinka cabbirka yar, miisaanka fudud, kalsoonida sare iyo jawaab celinta degdega ah.Shaqada jawaab celinta tamarta si loo kordhiyo masaafada safarka;iyo naqshado dhowr ah oo ilaalin ah sida hadda xaddidan, hadda ka sarreeya, heerkulka ka sarreeya, rotor qufulan, wareegga gaaban, iwm.
Astaamaha
●Kantarooluhu waxa uu qaataa DSP-ga Jarmalka, wadida dijitaalka ah ee caalamiga ah sida gunta kantaroolka xudunta u ah, kaas oo ka caawiya in la dhiso goob wanaagsan oo loogu talagalay kontoroolka mootada.
●Isticmaalka tuubada MOSFET ee awoodda sare leh ee qalabka korontada, waxay xaqiijin kartaa beddelka tamarta hufan.
●Ilaalinta badbaadada badan ee CAN interface iyo maaraynta shahaado badbaadada ee baytariga lithium BMS.
●Taageer ilaalinta gaaban ee wareegga gaaban (wajiga - dhulka, wejiga - wejiga, wejiga - isha), culeyska xad dhaafka ah, heerkulka ka badan, ilaalinta korantada.
●Tignoolajiyada dib u soo kicinta ee la isku halayn karo & dabacsanaantu waxay wanaajin kartaa masaafada wadista, si loo daboolo baahiyaha macmiilka, xitaa xaalada wadista xawaaraha hoose.
●Isticmaalka tignoolajiyada dhaq-dhaqaaqa yar-yar & tignoolajiyada soo degista qunyar-socod iyo tignoolajiyada haynta buuraha ee jiirada dheer, awood fuulid xoog badan, buur-hayn deggan, bilow xoog leh.
●Qabo qaabaynta algorithm iyo inta jeer ee 0 ilaa 300 HZ, si loo yareeyo qaylada iyo baaxadda gariirka.
●Shaqada ilaalinta qaladka saxda ah, buzzer-ku wuxuu xasuusiyaa dhammaan noocyada cilladaha, waa dayactir ku habboon.
●Wuxuu qaataa tignoolajiyada CAN-baska si loo yareeyo fiilooyinka ku xiran, cabbirka waa la hagaajin karaa waana mid online ah.
●Wuxuu qaataa nakhshad ku habboon si uu mugga u yaraado miisaankana u fududaado.Nafta - shaqada barashada, fududayso rakibidda iyo hagaajinta tallaabooyinka.
Shirkadaha baabuurta: si fudud u raritaan, werwer la'aan iibka ka dib
●La qabsi xoog leh iyo shaqo is-barasho
●Qalabka warshadeed ee caanka ah, tayada la isku halayn karo
●Shaqada alaarmiga cilad-sheegid
Isticmaalayaasha: waayo-aragnimo xoog leh, galloob aan naxariis lahayn
●Wadadu waa siman yahay, bilawgu waa xoog badan yahay, dardargelintuna waa xoog badan tahay
●Dhaqdhaqaaq weyn, awood fuulid xoog leh, ka-hortagga sibbashada jiirka
●Jawaab celinta tamarta, kordhinta tirada safarka, kordhinta nolosha batteriga
Product: design xirfadeed, tixgelin
●Waxqabadka xasilloon
●Nashqada badbaadada iyo ilaalinta saxda ah
Tilmaamid
| Qaabka Kontaroolaha | SDJ-7.5KW | |||
| Koronto | Gelida (DC/V) | 72V | 96V | 144 V |
| Wax soo saarka ugu badan ee hadda (AC/A) | 400A | 320A | 250A | |
| Wax soo saarka hadda la qiimeeyay (AC/A) | 115A | 78A | 52A | |
| Korontada ugu badan (KW) | 30 | 30 | 30 | |
| Wax soo saarka inta jeer ee ugu badan (Hz) | 300 | 300 | 300 | |
| Kala duwanaanshaha heerkulka deegaanka shaqada (℃) | -30°C--+55°C | |||
| Heerkulka deegaanka kaydinta (℃) | -40°C---+70°C | |||
| Heerka IP | IP67 | |||
| Waxqabadka dahaaran | 72V/96V Input & soo saarida qolofka DC1000V, daadinta hadda 0.05mA, iska caabin dahaaran 20MΩ | |||
| 144V Input & soo saarida qolofka DC2100V, soo daadanaya 2.1mA hadda, iska caabin dahaaran 1MΩ | ||||
| Hufnaanta xakamaynta | 0.98 | |||
| Habka qaboojinta | Qaboojinta dabiiciga ah/Hawo qaboojinta | |||
| Habka xakamaynta | Xakamaynta vector | |||
| Nooca Baabuurta | Matoorka Asynchronous | |||
| Heerka gariirka | GB/T2423 | |||
| Habka isgaarsiinta | CAN | |||
| Miisaanka (Kg) | 4kg | |||

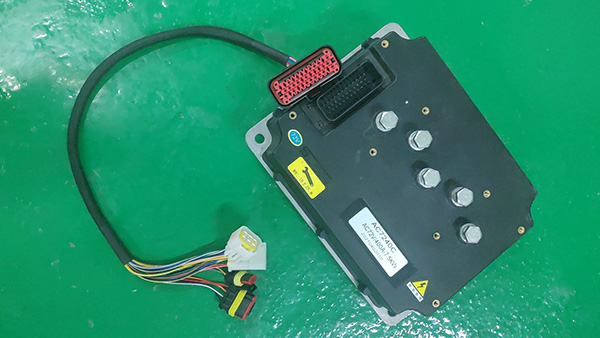

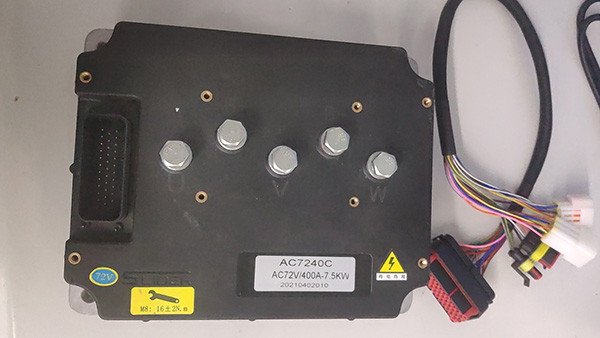

Sawirka Alaabta

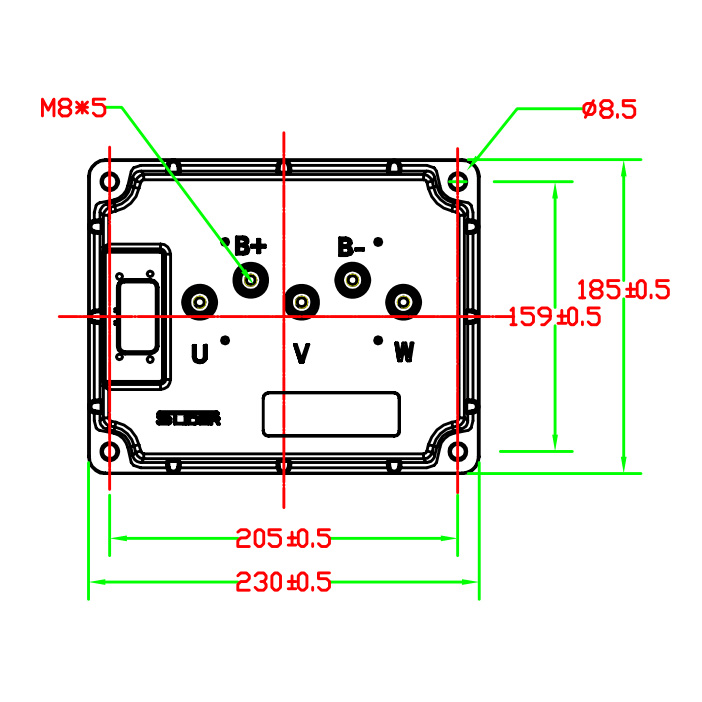

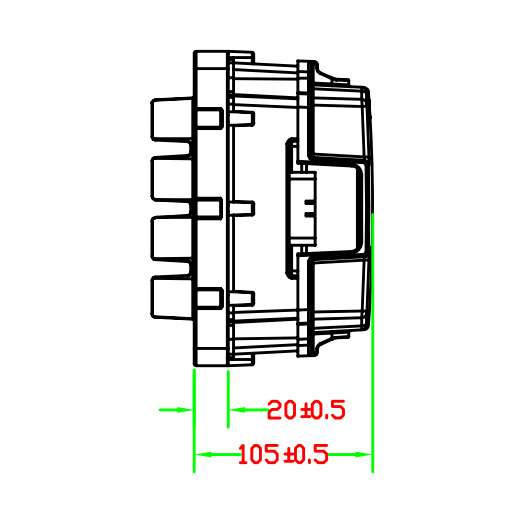

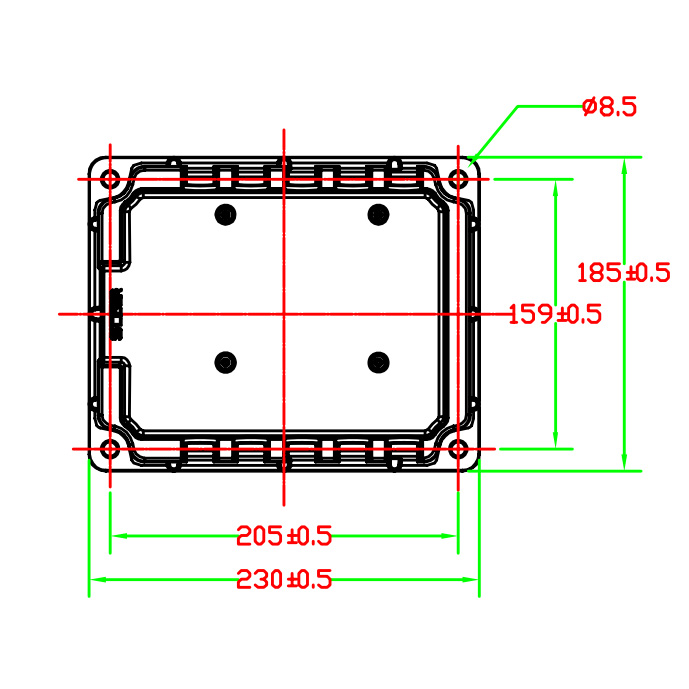

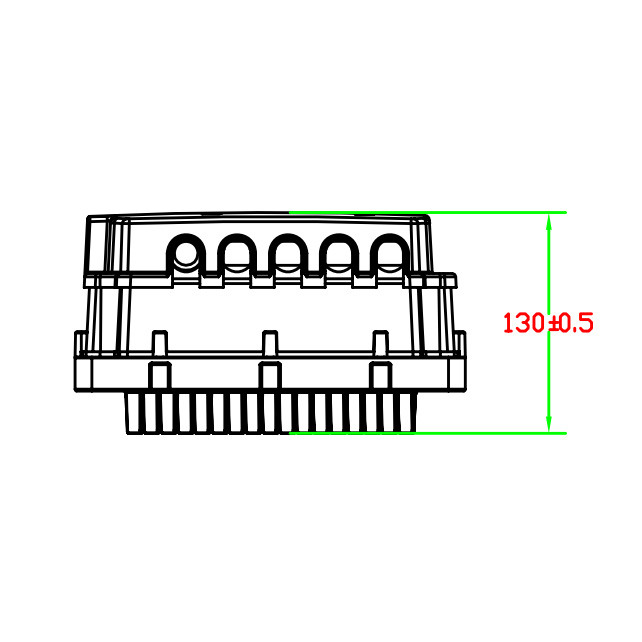

Sawirrada cabbirka
