24 ~ 72V DC nooca 1t dheellitirka fargeetada toosan ee mashiinka fargeetada ah ee korantada
Sharaxaada Alaabta

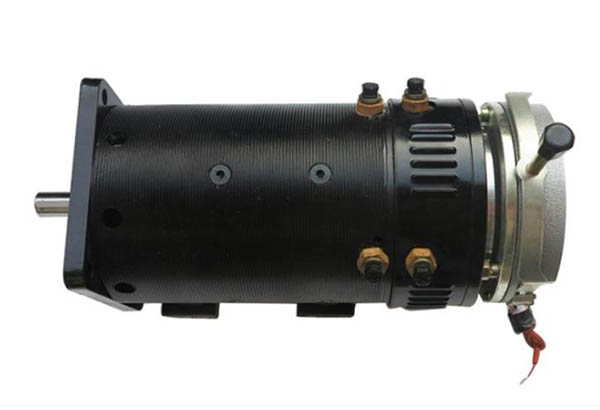

Qaab dhismeedka mashiinka forklift koronto waa ka fudud yahay kan gudaha forklift gubashada.Sawirku wuxuu muujinayaa 1DC nooca 1t dheelitirka fargeeto toosan oo culus oo korantada fargeeto ah.
Dhismaha aasaasiga ah ee mashiinka forklift koronto wuxuu ka kooban yahay qaybaha soo socda:
1.Unug koronto: xirmo batari.Heerarka batteriga caadiga ah waa 24, 30, 48, iyo 72V.
2.Frame: waa qaabka forklift, oo lagu alxanayo birta iyo birta.Ku dhowaad dhammaan qaybaha fargeetada waxay ku rakiban yihiin jir.Waxaa lagu soo rogaa culeysyo kala duwan inta lagu jiro hawlgalka, sidaas darteed waa inay lahaataa xoog iyo qallafsanaan ku filan.
3. Gudbinta: Awooda matoorka waxaa lagu kala qaadaa giraanta wadista fargeetada.
4. Nidaamka isteerinka: xakamee jihada wadista ee forklift.
5. Habka biriiga: ka dhig gaadhiga forklift in uu gaabiyo oo joogsado.
6. Habka korantada iyo korontada: Nidaamka korantada waxa uu matoorka ku maamulaa qaybo kala duwan si uu u gaadho bilawga, joogsiga, dib u noqoshada iyo habaynta xawaaraha fargeetada, iyo matoorka bamka saliidda ama cadaadiska biyaha.
XINDA DC Motor Catalog
| XINDADC MOTOR CATALOG | ||
| Awood la qiimeeyay | Shayga Lam. | Sawirka alaabta |
|

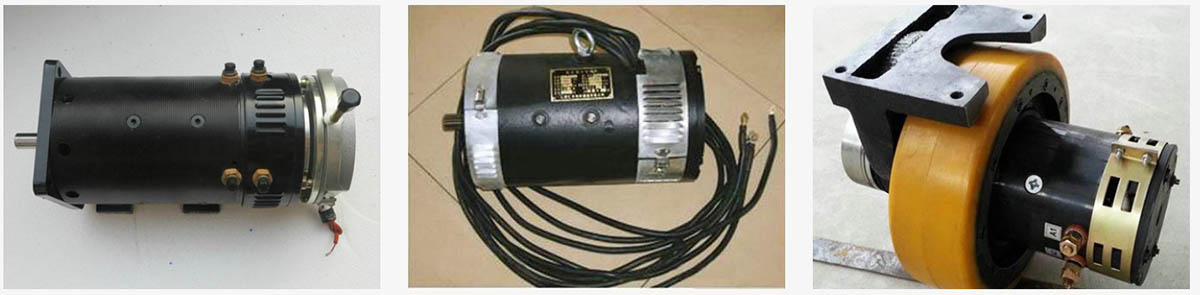

| Gaadhiga Forklift Koronto |  |
|
| Matoorka Korontada ee DC-ga | |
| 7KW | Modelka DC Traction Electric Motor Model 242ZDC 242ZD706H15 |
|
| 5KW | Modelka DC Traction Electric Motor Model 192ZDC 192ZD525H9 |
|
| 4KW | Modelka DC Traction Electric Motor Model 170ZDC 170ZD402H2A3 |
|
|
| MOTOR DC ee Baabuurka Korontada |
|
|

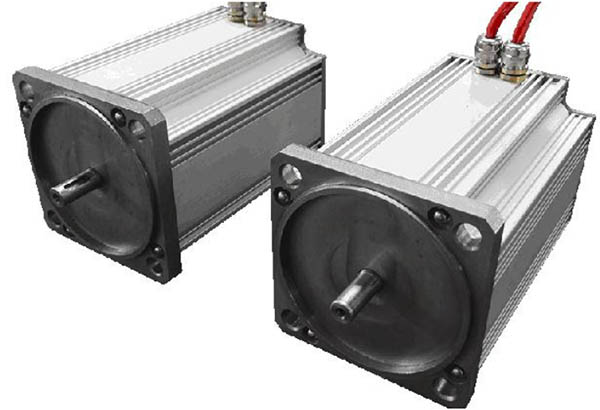

| Koronto Forklift Electric Motor |
|
|
| Koronto Forklift Electric Motor |  |
| XINDA DC Xaashida Taxanaha Matoorka | ||||||||
| Awood la qiimeeyay (KW) | 3 | 4 | 4.5 | 5 | 6 | 7 | 7.5 | 10 |
| Voltage Battery (VDC) | 48/60/72 | 72 | 96/144 | |||||
| Culayska Badan | 2.5 | |||||||
| Hadda la qiimeeyay (A) | 73/58.4/48.7 | 96.8/77.5/64.5 | 109/87.2/72.7 | 118/94.7/78.9 | 138.9/111/92.5 | 108 | 116 | 116/77 |
| Torque la qiimeeyay (NM) | 10.2 | 13.6 | 15.3 | 17 | 20.5 | 23.9 | 25.6 | 34 |
| Xawaaraha la qiimeeyay (RPM) | 2800 | |||||||
| Xawaaraha ugu sarreeya (RPM) | 4500 | |||||||
| Nidaamka Shaqada | S2:60 daqiiqo | |||||||
| Heerka dahaarka | H | |||||||
| Habka qaboojinta | qaboojinta dabiiciga ah / qaboojinta hawada | |||||||
| Waxtarka (100% LOAD) | 85 | 86 | 86 | 88 | 88 | 88 | 90 | 90 |
| Heerka Ilaalinta | IP23 (IP44) | |||||||
| Codsiga | xawaaraha yar ee rakaabka/baabuur saadka/gaadhi Golf/baabuur wax arka/gaadhi booliis/gaadhi / gaadhi is dul saaran, iwm. | |||||||
