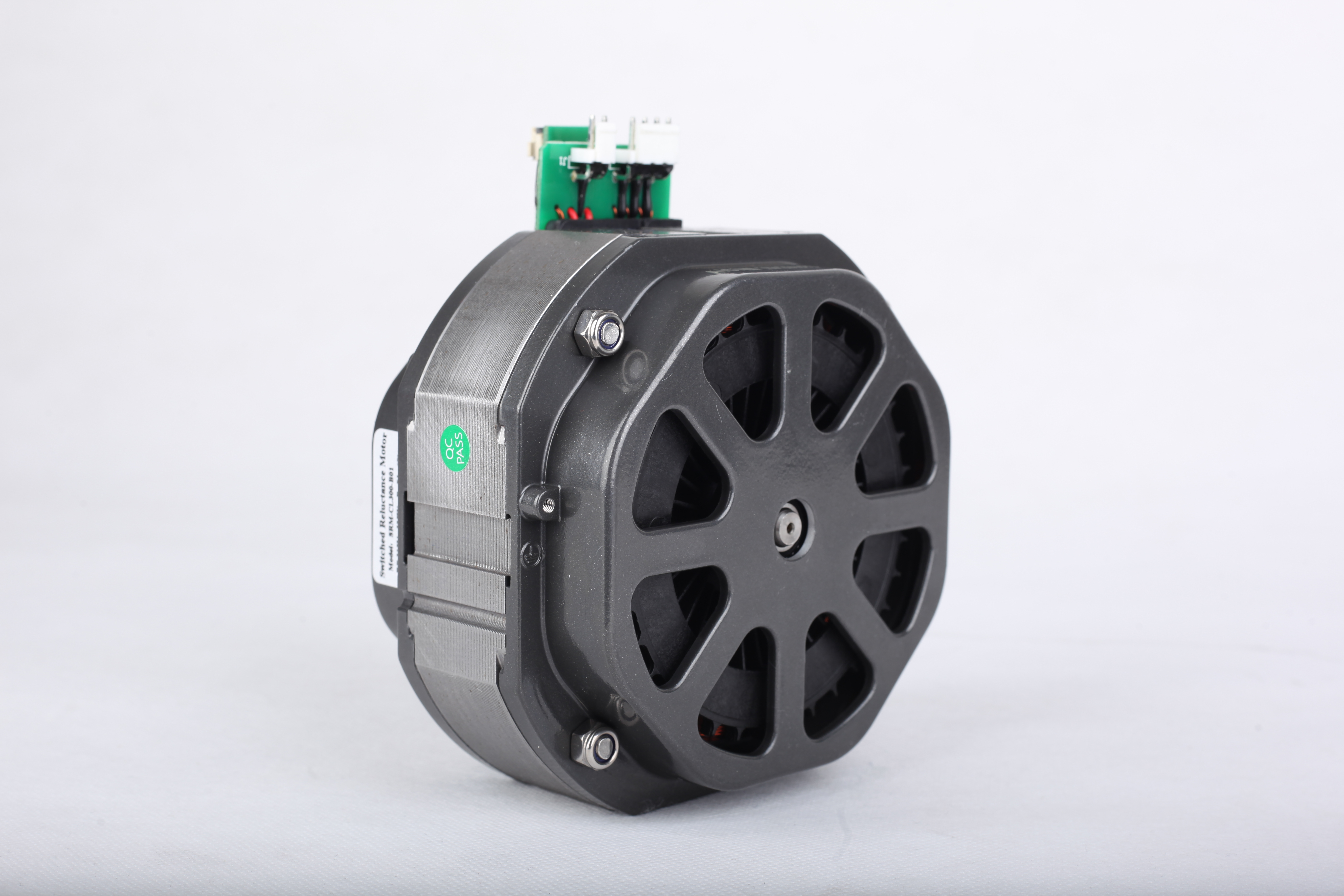

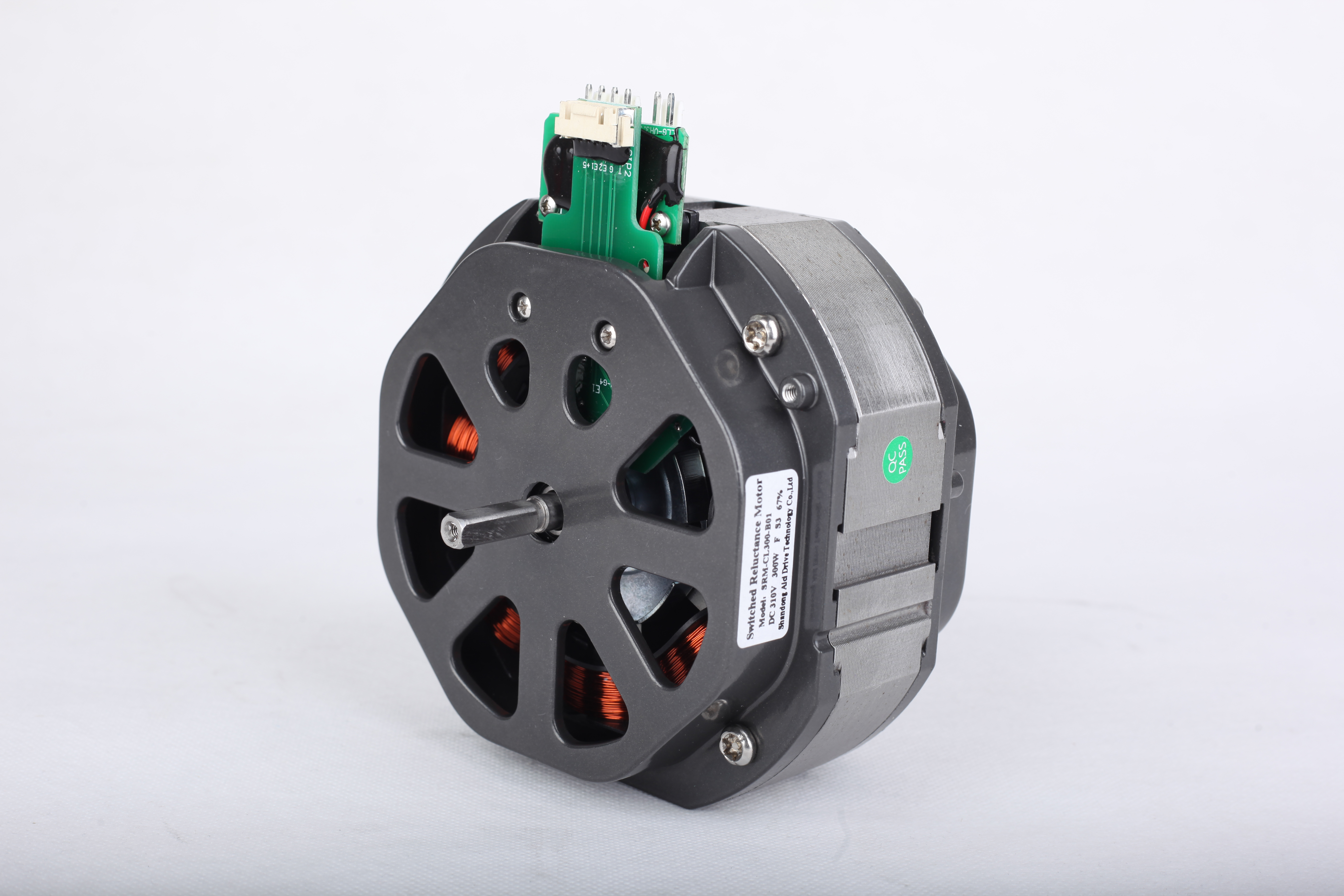

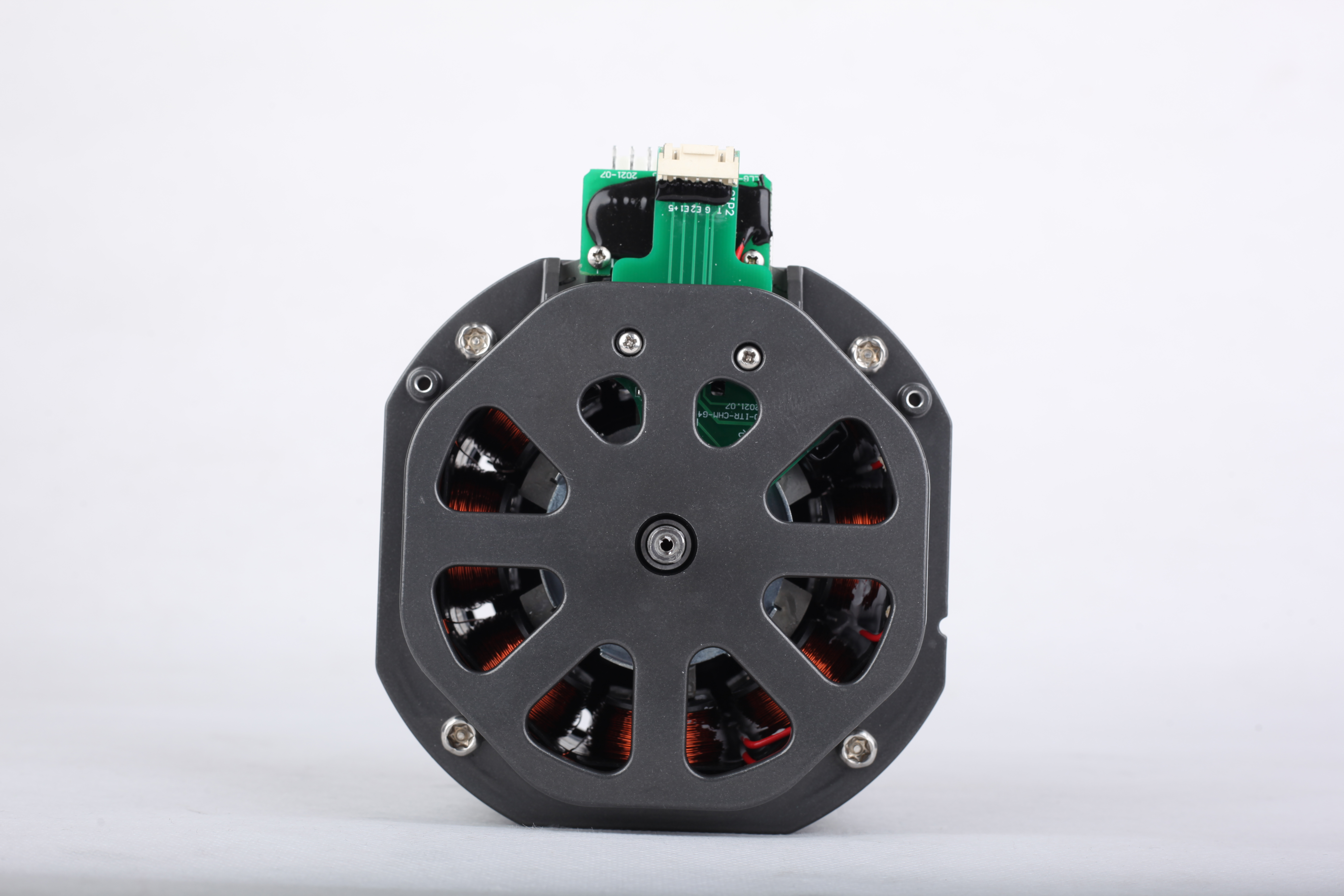

SRM 40-10000 rpm ee qalabka jikada ee mashiinka wax lagu karsado
SRM ee qalabka jikada
Matoorka cagajiid ee shirkadeena ee beddeshay (mashiinka wax lagu karsado) dhammaan kuwa cusub ee la cusboonaysiiyay

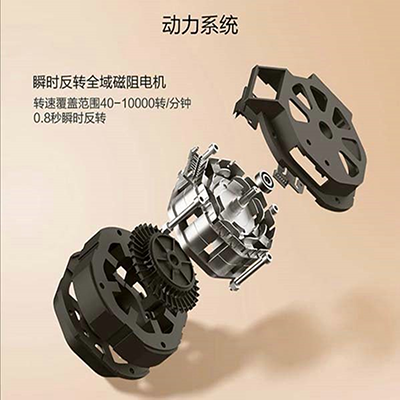

Isla markiiba rogaal celis dhammaan noocyada kala duwan ee matoorka diidmada
Xawaaraha daboolida: 40-10000 rpm
-0.8 ilbiriqsi oo toos ah
-35rpm-15000rpm
-Qorshaha wadista tooska ah ee sare
- Deggan
Matoor diidmo ah oo sax ah oo sax ah oo loogu talagalay mashiinnada wax lagu karsado ee shaqeeya ee badan oo leh awood wax soo saar 15,000 bishii
Xakamaynta matoorka cagajiid ee saxda ah ee saxda ah ee mishiinada cuntada ee hawl badan
Wax-soo-saar ballaaran iyo dhoofinta matoorada aan jeclayn ee mashiinnada cuntada ee shaqada badan leh
Xinda waa mid ka mid ah shirkadaha ugu horreeya ee Shiinaha oo bixiya alaabooyinka SRD ee u qalma oo leh xuquuqaha lahaanshaha maskaxeed ee madaxbannaan ee dufcadaha goobta qalabka guriga.
Ogaanshaha xakamaynta Lagu dabaqay mashiinka cuntada ee shaqaynaysa
Alaabooyinka shirkadeena waxaa lagu isticmaalaa Ningbo Fangtai Kitchenware Mashiinka karinta ee "Mibo" (qeybiyaha)

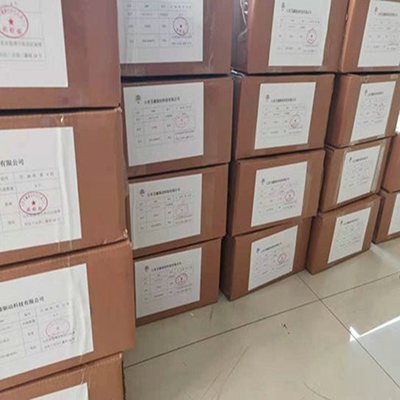

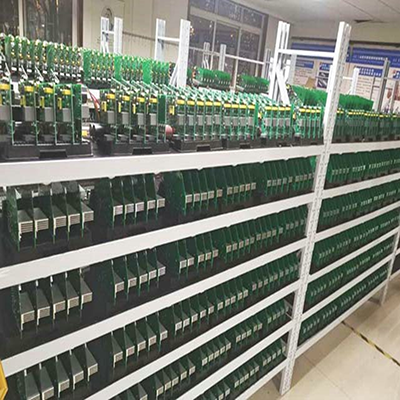

Xakamaynta korantada ee mootooyinka waa la sanduuqay oo la raray (hadda 5,000 oo xabbo bishii, oo waxay ku fidaysaa 50,000 oo qaybood)
| Halbeegyada aasaasiga ah | Halbeegyada aasaasiga ah | Qiimaha tirada |
| xawaare hooseeya | Xawaaraha ugu yar | 35rpm |
| Xawaare sare | Xawaaraha ugu badan | 10500rpm |
| Kala duwanaanshaha Torque | Kala duwanaanshaha Torque | 2.5-3.0nm (min rpm) - 0.2nm (max rpm) |
| Awood sare | Awoodda ugu badan | 550W |
| qaylada xawaaraha sare leh | Sawaxanka xawaaraha ugu badan | ≤ 78db |
| Isteerinka baabuurka | Jihada wareega | Isla markiiba hore u soco oo dib ugu noqo wakhti aad u yar gudaheed. |
| fasalka ilaalinta dahaarka | Heerka ilaalinta dahaarka ee Motor | H |
| Ku shaqaynta heerkulka deegaanka | Heerkulka deegaanka ee dhaqdhaqaaqa badbaadada leh | -10 ℃ - 85 ℃ |
| Heerkulka dhaqdhaqaaqa dhaqdhaqaaqa | Heerkulka Dhaqdhaqaaqa Badbaadada ah ee Matoorka | ≤ 120 ℃ |
| Heerkulka siliga baabuurka ayaa sarreeya | Heerkulka ugu sarreeya | 180 ℃ |
| Korontada gelinta korantada | danab galista PCBA | 120V ama 240V AC magac ahaan |
| Shaqada kululaynta | Kululaynta | HAA ayaa leh |

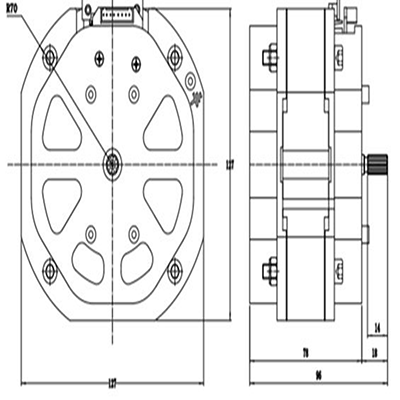

1. Cabbirka cabbirka baabuurka
Fiiro gaar ah: jihada dhererku waxay noqon kartaa 78mm ilaa 74m;foomka usheeda dhexe motor iyo waxaa lagu hagaajin karaa si waafaqsan shuruudaha macaamiisha.
2. Sharaxaada aasaasiga ah ee nidaamka xakamaynta PCAB

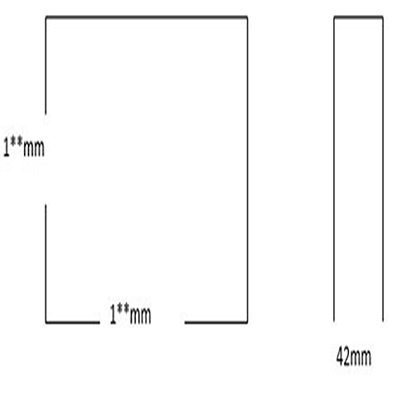

Nooca A. Tilmaamaha Cabbirrada:
Qaabka gaarka ah iyo cabbirka ayaa loo baahan yahay in lagu go'aamiyo iyadoo loo eegayo shuruudaha naqshadeynta macaamiisha iyo gorgortanka.
1) Koontarooluhu waxa uu ka kooban yahay aaladaha awooda mos, weelka kulaylka, kontoroolka, wadista, capacitors iyo qaybo kale, waxaana ka mid noqon kara badalida qaybaha korontada (qaybtan mararka qaarkood waxa ay ku jirtaa qaybaha kale ee mishiinka wax lagu karsado).Oo ay ku jiraan ilaalinta biriiga, ilaalinta kulaylka iyo ilaalinta kale ee muhiimka ah.
2).Dulmarka waxqabadka iyo heerarka
| Waafaqsanaanta Electromagnetic CE | Hore u soco oo rogaal celi xawaare kasta 1-1.5 ilbiriqsi gudahood | Algorithm ee saldhiga sayniska | Algorithm ka-hortagga ruxitaanka biriiga |
| Heerka laba-geesoodka ah ee 85 | Tignoolajiyada carrab la', farsamada farsamaynta faragelinta | Kalsooni heer sare ah, joogtayn sare, nolol dheer | Heerarka qaranka |
Laba: nooca caadiga ah
Tilmaame dhexdhexaad ah oo lagu iibin karo qiimo jaban.
1. Waxqabadka asaasiga ahi waa sida soo socota:
| Halbeegyada aasaasiga ah | Halbeegyada aasaasiga ah | qiimaha tirada
|
| xawaare hooseeya | Xawaaraha ugu yar | 40+ rpm |
| Xawaare sare | Xawaaraha ugu badan | 10500rpm |
| Kala duwanaanshaha Torque | Kala duwanaanshaha Torque | 2nm (min rpm) - 0.1nm (max rpm) |
| Awood sare | Awoodda ugu badan | 450W |
| qaylada xawaaraha sare leh | Sawaxanka xawaaraha ugu badan | ≤ 83db |
| Isteerinka baabuurka | Jihada wareega | Isla markiiba hore u soco oo dib ugu noqo wakhti aad u yar gudaheed. |
| fasalka ilaalinta dahaarka | Heerka ilaalinta dahaarka ee Motor | H |
| Ku shaqaynta heerkulka deegaanka | Heerkulka deegaanka ee dhaqdhaqaaqa badbaadada leh | -10 ℃ - 85 ℃ |
| Heerkulka dhaqdhaqaaqa dhaqdhaqaaqa | Heerkulka Dhaqdhaqaaqa Badbaadada ah ee Matoorka | ≤ 120 ℃ |
| Heerkulka siliga baabuurka ayaa sarreeya | Heerkulka ugu sarreeya | 180 ℃ |
| Korontada gelinta korantada | danab galista PCBA | 120V ama 240V AC magac ahaan |
| kululaynta | Haa Maya | Haa |
2. Sharaxaada aasaasiga ah ee nidaamka xakamaynta PCAB

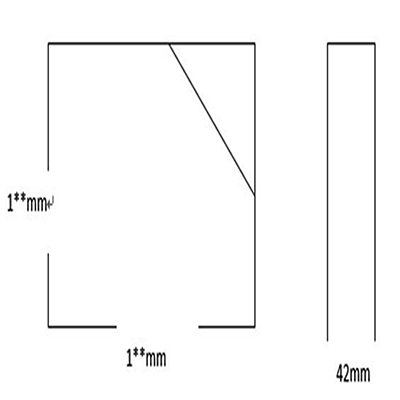

Sharax cabbirka aasaasiga ah:
Qaab iyo cabbir gaar ah, laga dooday oo la go'aamiyay
Kantarooluhu waxa uu ka kooban yahay aaladaha awooda mos, weelka kulaylka, kontoroolka, wadista, capacitors iyo qaybo kale, waxa uuna si ikhtiyaari ah ku dari karaa ama kuma dari karaa beddelka qaybaha korontada.Oo ay ku jiraan ilaalinta biriiga, ilaalinta kulaylka xad dhaafka ah iyo ilaalinta muhiimka ah ee kale ee ay qeexeen macaamiishu.Ma jiro kuleyl/kuleyl waa ikhtiyaari.
B: Alaabooyinka SRD ee qalabyada kale ee guriga ee Ai Magnetic Technology
AICI waxay leedahay tignoolajiyada SRD xoog leh iyo awoodaha R&D, kuwaas oo dabooli kara baahida alaabtaada wakhti gaaban gudaheed.
| isticmaal | xawaaraha rpm | qaylo | wareegga horumarka | Farsamada iyo Alaabooyinka |
| Darbiga-xawaaraha sareeyo | Wax rar ah malaha 45000;raran 30000 | Buuxi heerka qaranka | 90 maalmood | Tignoolajiyada dhamaystiran, dhamaystirka alaabta |
| qalajiyaha gacanta | 45000-50000 | Buuxi heerka qaranka | 45 maalmood | Tignoolajiyada dhamaystiran, dhamaystirka alaabta |
| mashiinka dharka lagu dhaqdo | Xawaaraha kasta oo la rabo (ay ku jiraan wadista tooska ah iyo xawaaraha sare) | Buuxi heerka qaranka | 90 maalmood | Tignoolajiyada dhamaystiran |
| taageere (fan), kombaresarada qaboojiyaha | Xawaaraha kasta oo la rabo (ay ku jiraan wadista tooska ah iyo xawaaraha sare) | Buuxi heerka qaranka | 90 maalmood | Tignoolajiyada dhameystiran, alaabada qaar waa la dhammeeyay |
| qashinka qashinka | Wadista tooska ah ee xadka xawaaraha loo baahan yahay | Buuxi heerka qaranka | 90 maalmood | Tignoolajiyada dhamaystiran |
| Nadiifiyaha vacuum, timaha qalajiyaha | 100,000 rpm + | Buuxi heerka qaranka | 450 maalmood | farsamada |
Xinda Electric Technology Co..Ku soo dhawoow wada shaqayn
Soo bandhigida alaabta:
Ka dib sannado badan oo cilmi-baaris farsamo oo joogto ah, Xinda waxa ay si buuxda u hanatay tignoolajiyada udub-dhexaadka ah ee matoorrada diidmada ah ee qalabka guriga, waxayna samaysay badeecooyin taxane ah oo leh xuquuqaha lahaanshaha garaadka oo madaxbannaan.Alaabooyinka ay shirkaddu soo saarto ayaa ah mid si weyn looga isticmaalo agabka guryaha,sida kuwa dharka lagu dhaqo,qalabka-dhaliyaha,derbiga-xawaaraha dheereeya,mashiinada nadiifiyaha,gacna qalajiyaha,compressors-ka,iwm,waxayna ku guulaysteen inay u dhoofiyaan dufcadaha Yurub iyo Maraykanka iyo wadamo kale. .
Tilmaamaha farsamada ee matoorada taxanaha SRM-CL/GD/JD:
Waxay leedahay sifooyinka wadista tooska ah ee ballaadhkeeda, hufnaan sare, hawlgal xawaare sare leh, buuq yar, wakhti dheer oo hawlgal joogto ah, wareeg joogto ah iyo rogaal celin iyo cimri dheer.Qaadashada SRM-CL tusaale ahaan, alaabtani waxay leedahay tiro balaadhan oo ah darawal toos ah, sifooyin wax soo saar aad u fiican, xawaare sare, saxsanaan sare, nuxur farsamo oo sarreeya iyo habka adag.
Qiyaasaha dhammaystiran ee matoorada taxanaha SRM-CL/GD/JD:
Halbeegyada waxqabadka aasaasiga ah
| Tilmaamaha korantada | Kala duwanaanshaha wadista tooska ah | awoodda xawaaraha sare | xakamaynta qaylada |
| 110V 220V | 30-11000rpm 70-25000rpm | 100000rpm | Deganaanshaha ≤ 79db Nooca caadiga ah ≤ 84db
|
Xawaaraha sarreeya, wadista tooska ah ee matoorada diidmada ah ee u beddelay mishiinnada cuntada ee shaqada badan leh
Xinda waa shirkaddii ugu horreysay ee Shiinaha oo horumarisa, soo saari karta, iibin karta matooradan oo kale tiro badan.
45,000-rpm-xawaaraha sare-sare ee matoorka cagajiid ee ay samaysay Xinda Technology waxa uu ku shaqayn karaa wakhti dheer iyada oo culayskeedu yahay 30,000 rpm.Waa matoor xawaare sare leh oo gidaarada jebin kara.
